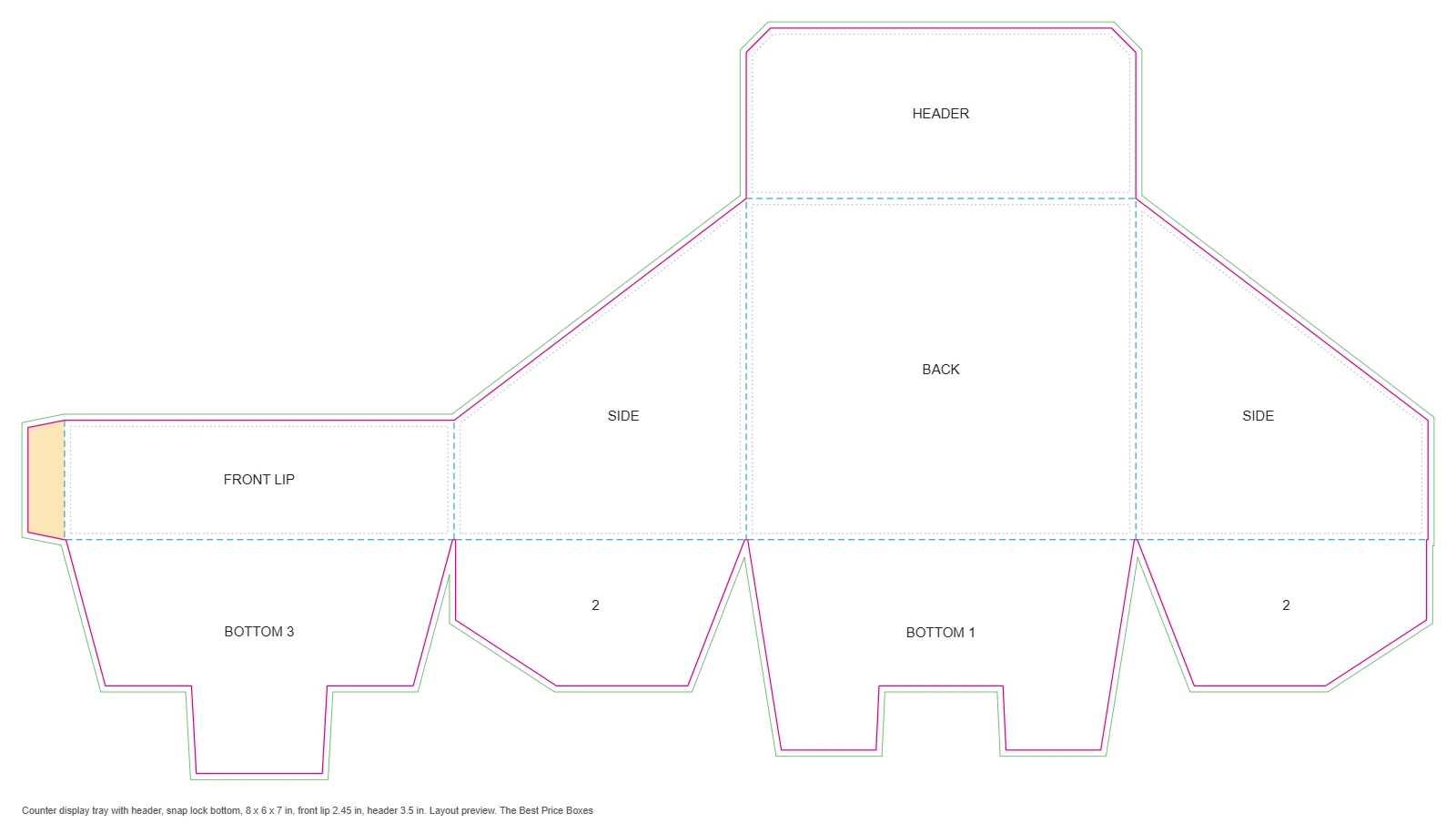

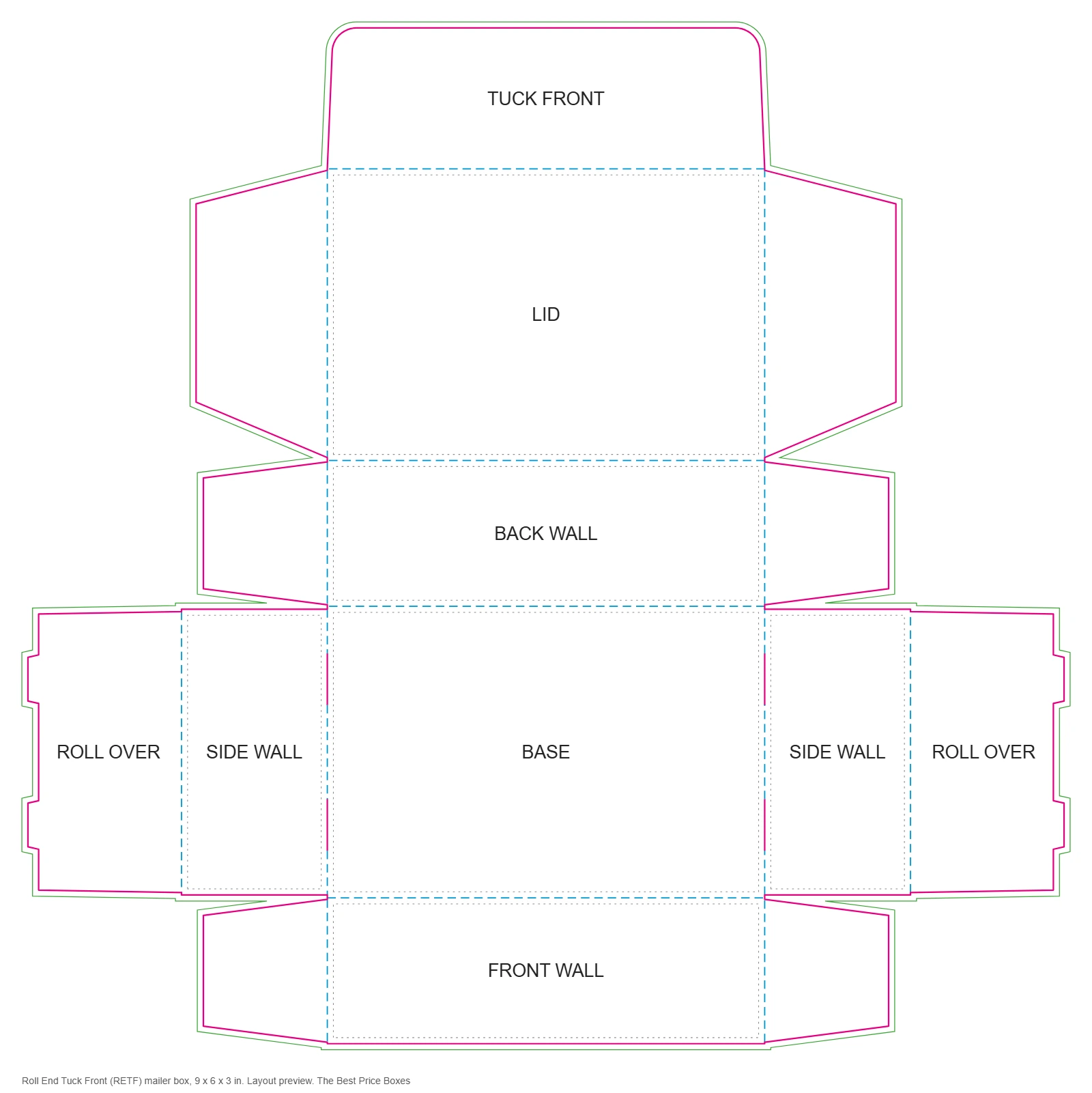

A dieline is the flat template of a box: every cut, crease and glue area drawn at full size, ready for artwork. This library shows the layout of each box structure we make, the stock sizes we draw most often, and the rules for placing artwork. Pick a structure, check the layout, then ask for the file in your exact size.
How to get a dieline in your size
- Choose the structure that fits your product. If you are unsure, send the product and we will recommend one.
- Send inside dimensions as length x width x depth, with the board you want if you know it.
- A specialist replies within one business day with the production-ready dieline as a vector PDF that opens in Adobe Illustrator, plus SVG and DXF.
Get any box dieline in your exact size, free.
Send your inside dimensions and a specialist replies within one business day with a production-ready file: vector PDF that opens in Adobe Illustrator, plus SVG and DXF. Free design help, free samples and no minimum order.
Request a dieline
Send your inside dimensions and a specialist replies within one business day with a production-ready file: vector PDF that opens in Adobe Illustrator, plus SVG and DXF. Free design help, free samples and no minimum order.
Request a dieline
What every dieline file includes
| Line | Meaning | What to do with it |
|---|---|---|
| Solid magenta | Cut | The knife follows this line. Nothing outside it survives. |
| Dashed blue | Crease | The board folds here. Keep small text and fine lines off it. |
| Thin green | Bleed, 0.125 in outside the cut | Run backgrounds and images out to this line so no white edge shows after cutting. |
| Dotted gray | Safe zone, 0.125 in inside each panel | Keep logos, text and barcodes inside it. |
| Orange fill | Glue area | Leave it free of ink and coating so the glue bonds to bare board. |
More structures on the way
Reverse tuck end, auto-lock bottom, snap lock bottom, shipping cases, sleeves and trays, two-piece and magnetic rigid boxes, stand-up pouches and paper shopping bags are drawn and being checked. Each is added here once it has been verified. If you need one of them now, request it and we will send the file directly.
