Dietary supplement packaging covers the cartons, sleeves and boxes that hold bottles, blister packs, sachets and sample sets of vitamins and supplements. TBPB prints it custom to your bottle or pouch size with no minimum order, and if you bring a written quote for the same specs we will beat it.
What the carton has to do
A supplement carton does two jobs at once. On a shelf or a product page it has to explain what the thing is in about three seconds. Once the customer picks it up, it has to hold a lot of required text: the facts panel, ingredient list, directions and warnings. Those two jobs compete for space, which is why the dieline and the panel layout deserve as much thought as the front design.
Matching the carton to the container
Most supplements come in one of four forms, and each calls for a different box:

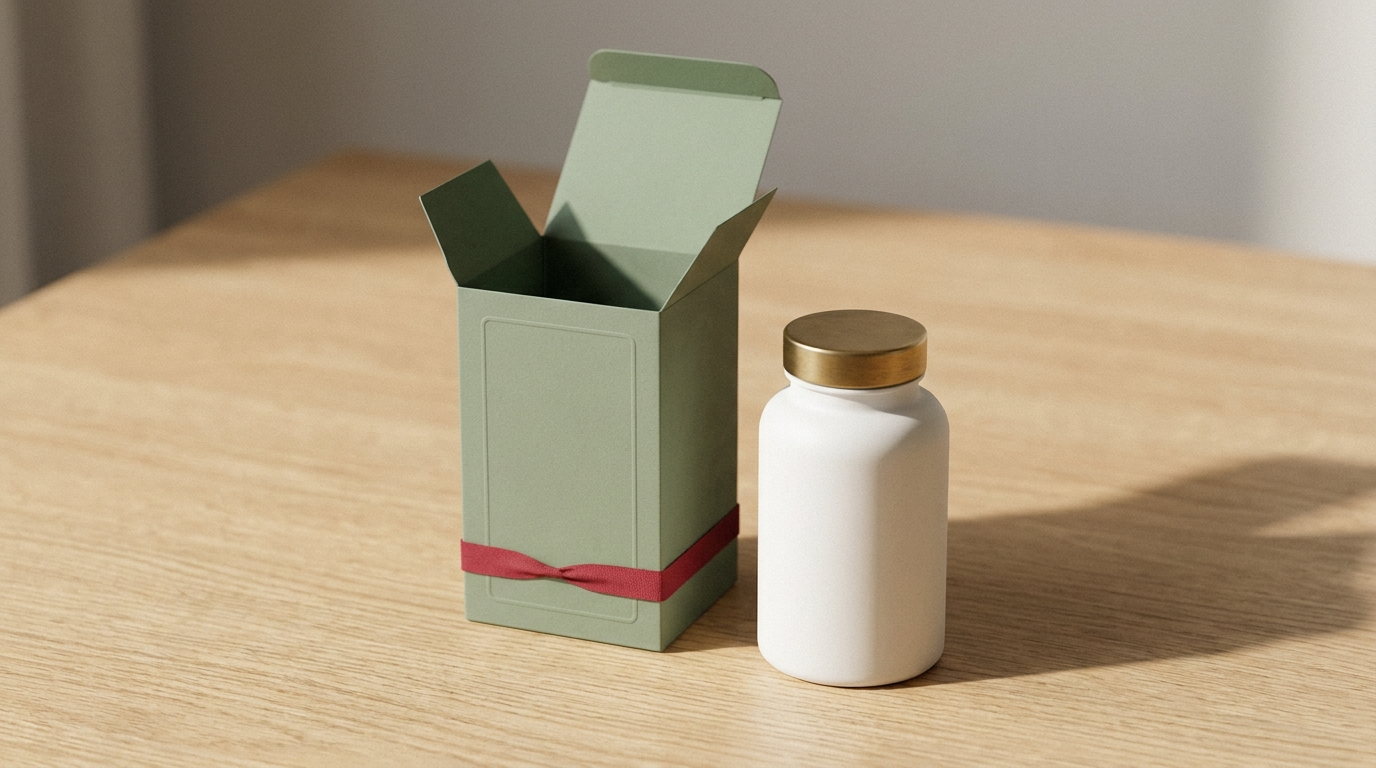

- Bottles and jars, which take a straight tuck or reverse tuck carton sized to the bottle plus cap
- Blister packs, which suit a slim tuck carton or a sleeve
- Sachets and stick packs, which suit a small display carton or a counter display box
- Variety or starter sets, which suit a rigid box or a tray with several slots
If you sell a single bottle, the vitamins and supplements packaging range shows the cartons most brands start from. A tuck top box works well for smaller formats, and it is easy to open and reclose.
Sizing a supplement carton
Measure the bottle at its widest point including any shrink band or label, plus total height with the cap on. Add about 1/8 inch per side for a folding carton. If the bottle ships inside the carton, think about whether the cap and neck can take a knock, and ask us about a paperboard insert or divider. For multi-bottle bundles, measure the bottles as they will sit side by side, not stacked in your head.
Board, print and finish

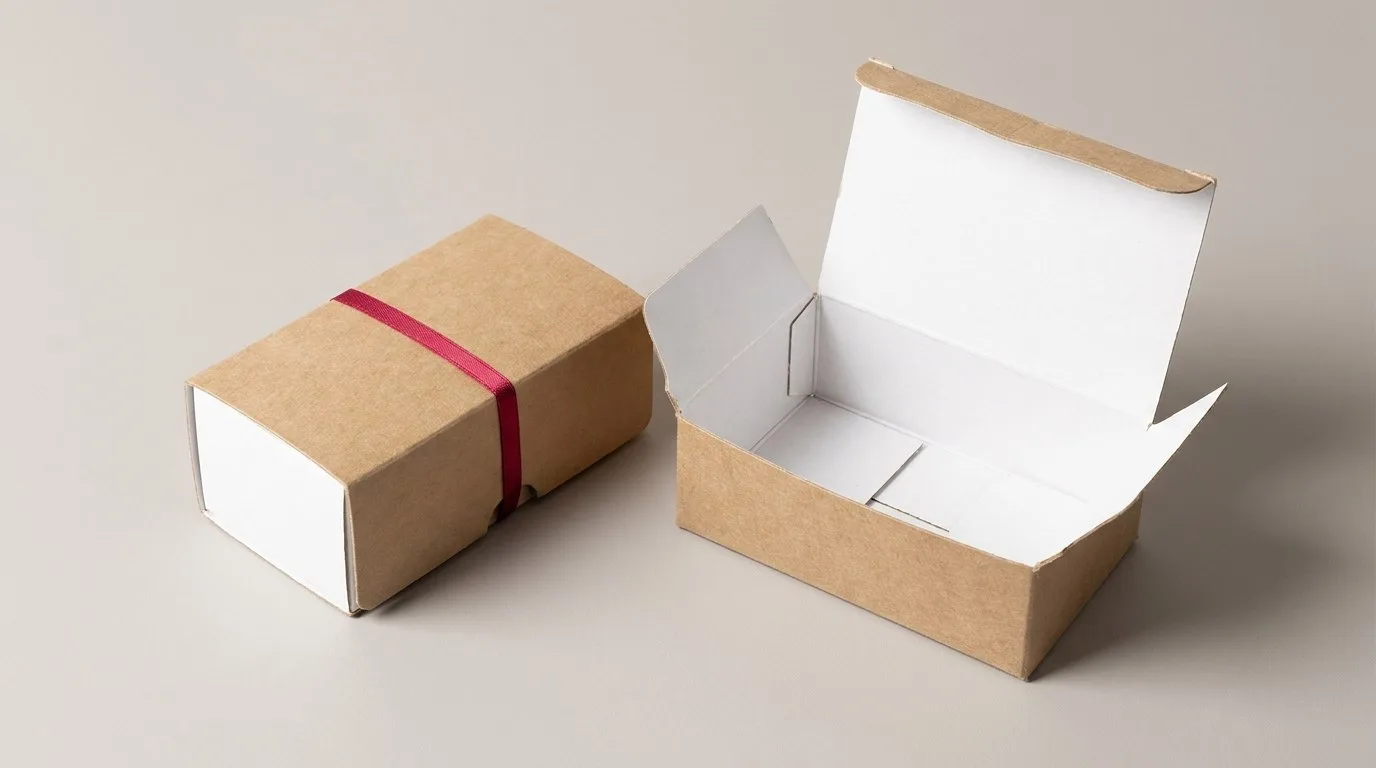

Folding carton paperboard in the 16 to 24 point range suits most supplement lines and prints in full-colour CMYK. A Pantone match keeps a brand colour consistent across product lines. Matte aqueous coating suits a clean, clinical look, and soft-touch lamination, foil and spot UV give a premium, giftable feel. Kraft board suits natural or botanical brands, though it dulls bright colours. Think about the shelf, too: dark matte boxes show scuffs more than white.
Supplement labelling is regulated, and the responsibility sits with you. Supplement facts, ingredient lists, structure/function statements, allergen notes and disclaimers must follow the rules for your product and market. TBPB prints the artwork you supply and does not check compliance, so confirm requirements, including any contact-material needs, with your own regulatory adviser first.
When another style is better
If you ship direct to consumers, a retail carton is not a shipping box. Put the carton inside a mailer or a corrugated outer. If you have a subscription bundle, consider one rigid or mailer box that holds several cartons, rather than shipping each separately.
Designing the panels
Do the text first. Count the lines your facts panel needs at a readable type size, then see which carton face has room for it. Many brands discover too late that the panel they wanted on the back will not fit and end up shrinking the type until it is hard to read. Giving the facts panel a side face, and keeping the front for the name and one clear benefit line, usually works better. Send us a draft and we will check it against the dieline before you finalize anything.
Next step
Send the container dimensions (with cap), the quantity (even one) and the style. We draw the dieline and quote it. More health and wellness cartons are in our pharma packaging range.
Frequently asked questions
What is the minimum order for dietary supplement packaging?
There is no minimum order. Order one carton to test the fit, or thousands for a full launch. The price-beat guarantee applies at any quantity.
What size carton do I need for a supplement bottle?
Measure the bottle at its widest point including any label or shrink band, then the full height with the cap on. Add about 1/8 inch per side. Send the numbers and we draw the dieline.
What board is best for supplement boxes?
Folding carton paperboard around 16 to 24 point suits most bottle and blister cartons. It prints sharply and can take matte, gloss, soft-touch or foil finishes. Heavier rigid board suits gift sets.
Can you print supplement facts panels on the box?
We print whatever artwork you supply, including facts panels, ingredient lists and warnings. We do not review it for compliance, so check labelling rules with your own regulatory adviser.
Can supplement boxes hold several bottles or sachets?
Yes. We can size a carton or rigid box for a bundle and add paperboard dividers so items do not rattle. Send the dimensions of each item and how many go in.
Are your supplement boxes food safe?
We do not make food-safety or contact claims. Cartons normally hold already-sealed bottles or pouches. If your product touches the board, confirm requirements with your regulatory adviser before ordering.
