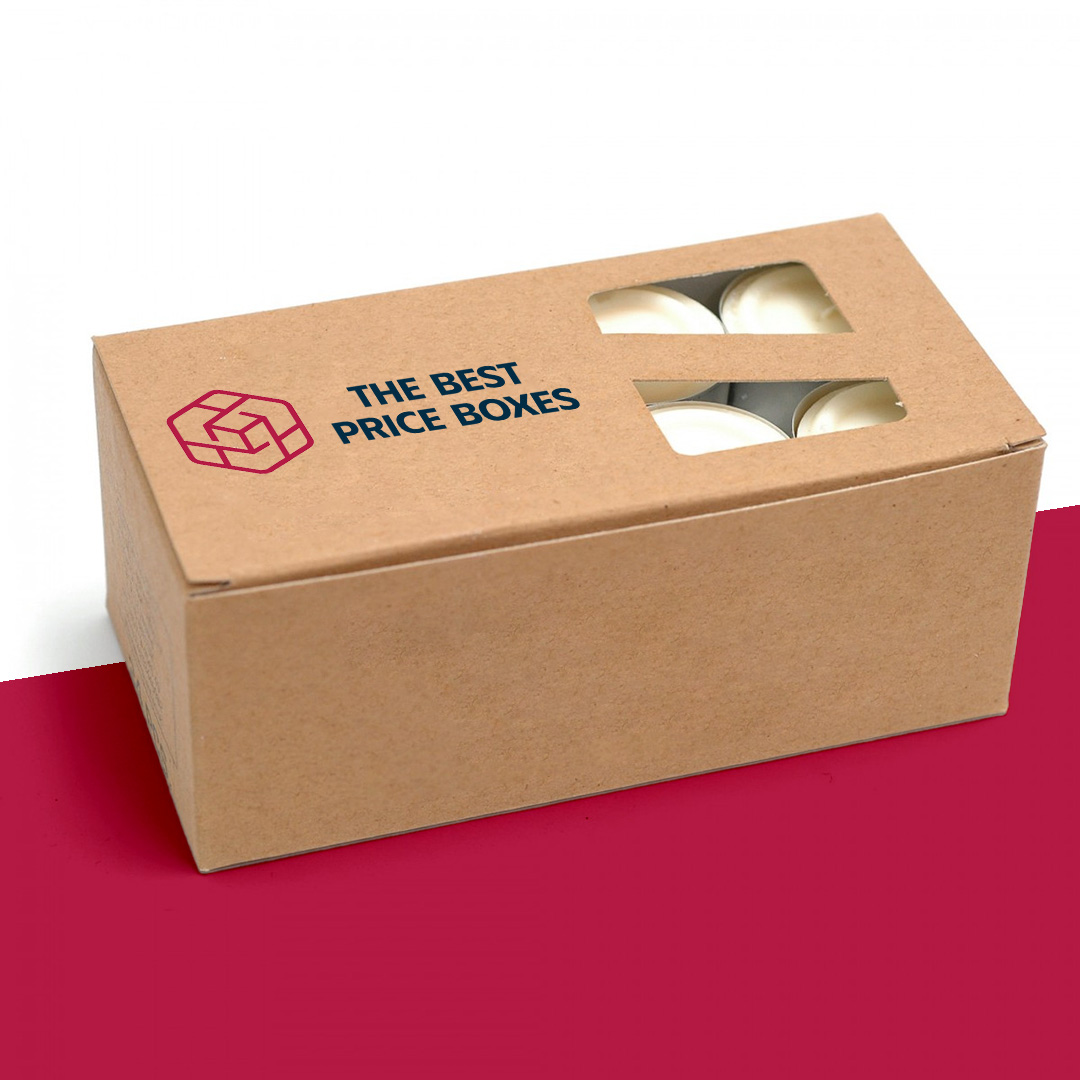

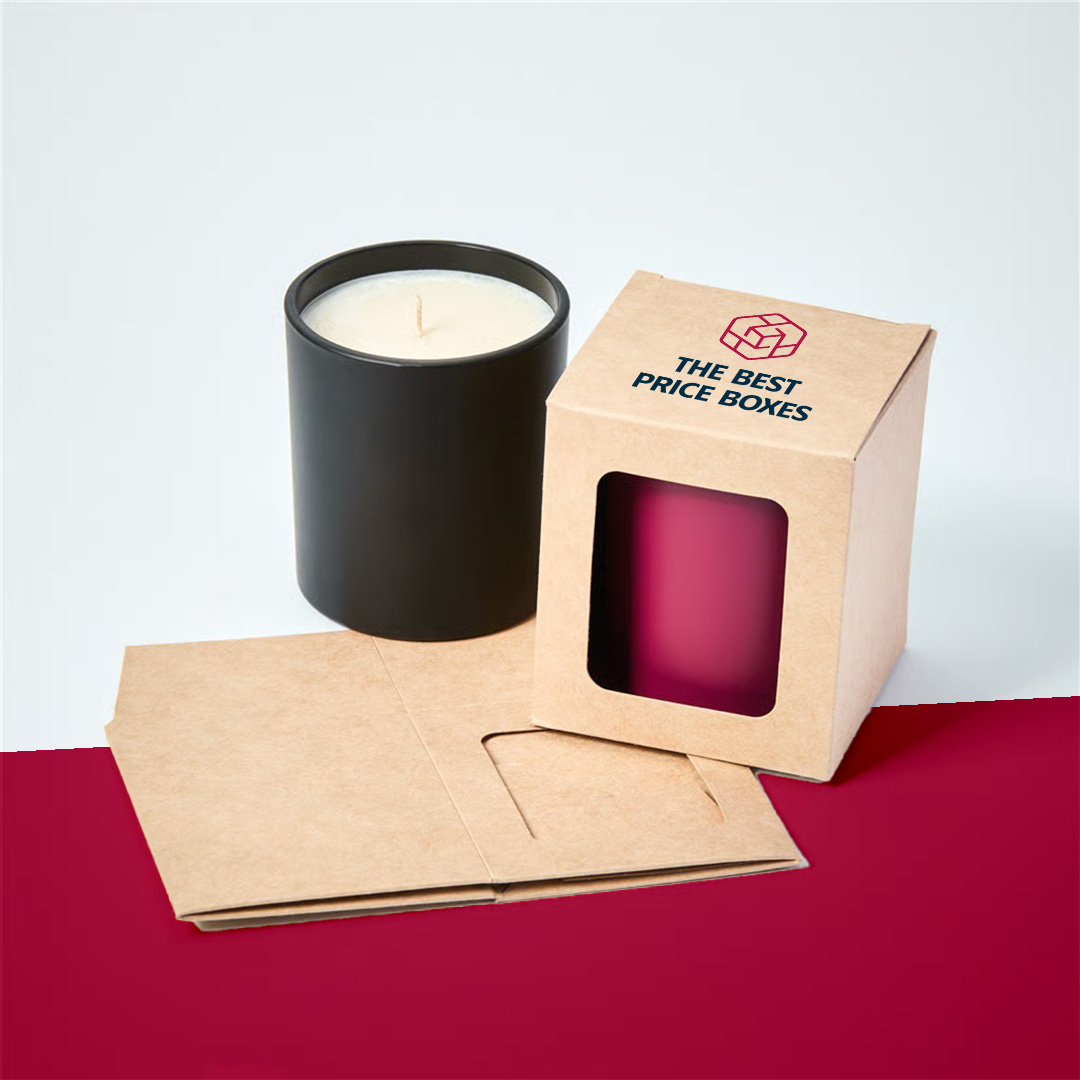

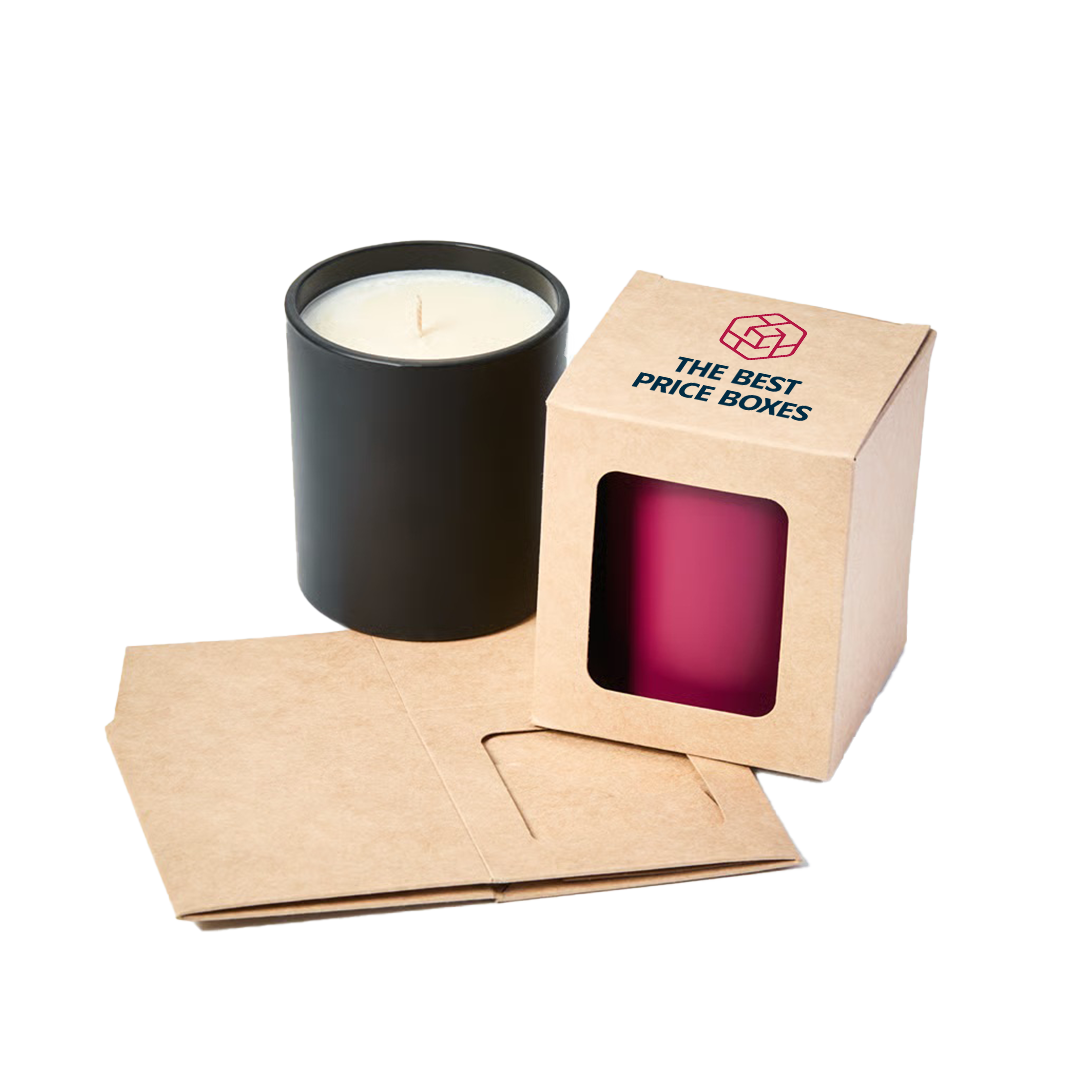

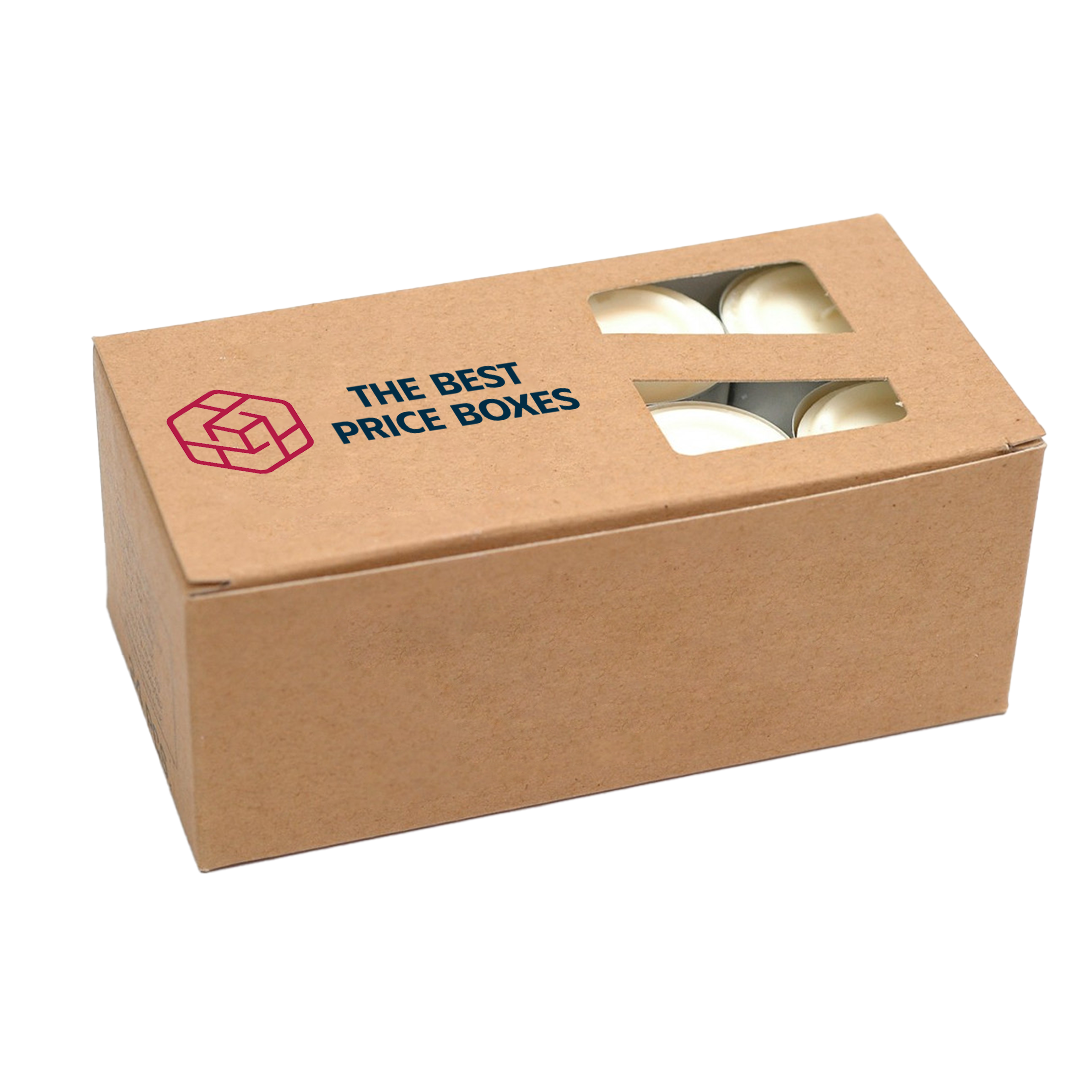

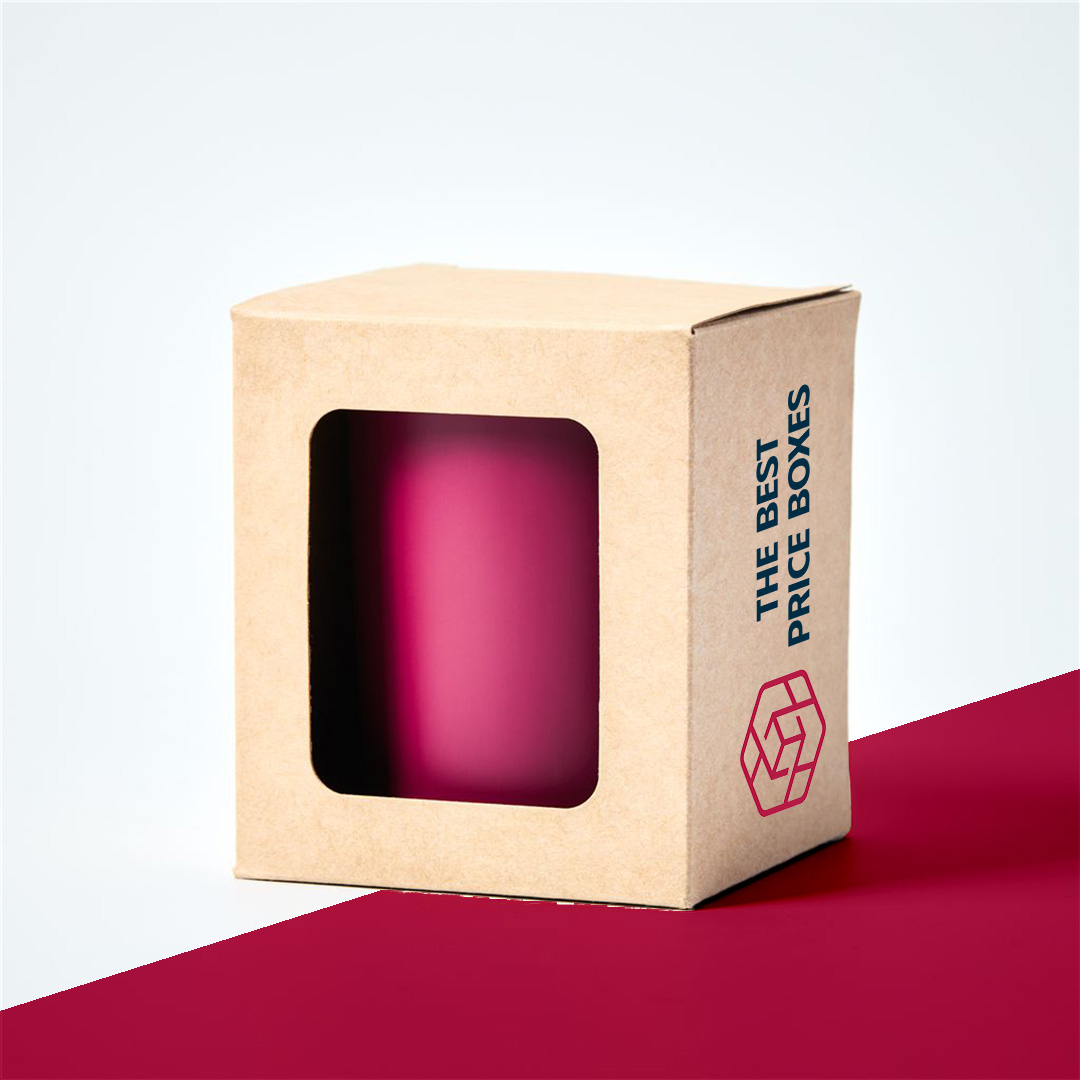

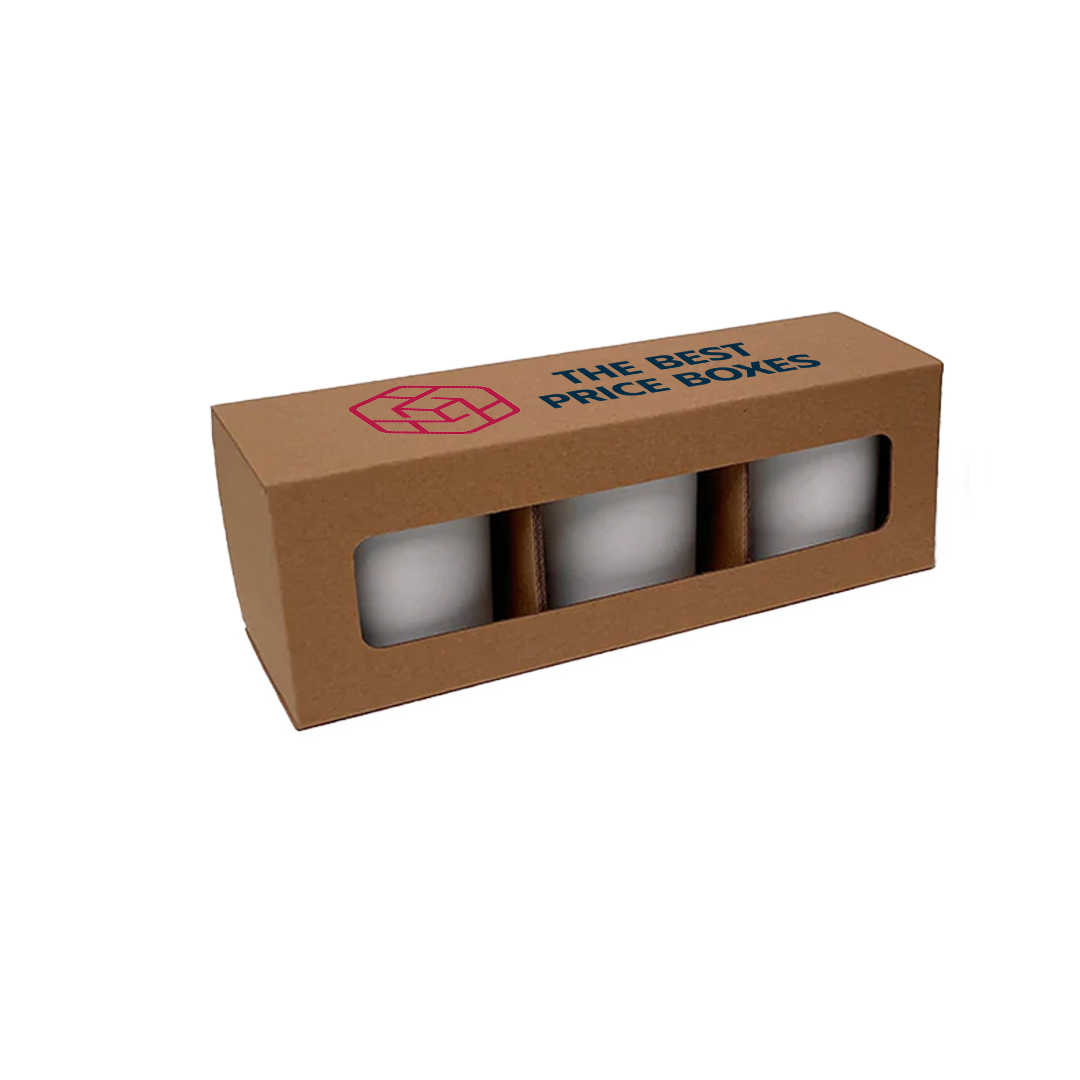

A candle window box is a printed carton with a cut-out panel, usually covered with clear film, so shoppers can see the jar and the wax color without opening anything. TBPB makes them to your jar size with no minimum order, and if you bring a written quote for the same specs, we beat it.
Why a window helps a candle sell
Candles are bought with the eyes first. Wax color, a hand-poured top, a wood wick, a pretty label: none of that is visible in a plain closed carton, so the shopper has to trust the picture on the front. A window removes the doubt. It also lets people check the jar size at a glance, which settles the eight ounce or twelve ounce question at a glance.
The trade-off is light. Dyed wax and some fragrance oils fade in sustained light, and a window puts the jar in the light. If your candles use pale dyes, keep them off sunny shelves, or choose a smaller window so most of the jar stays in shadow.
Getting the size and window position right

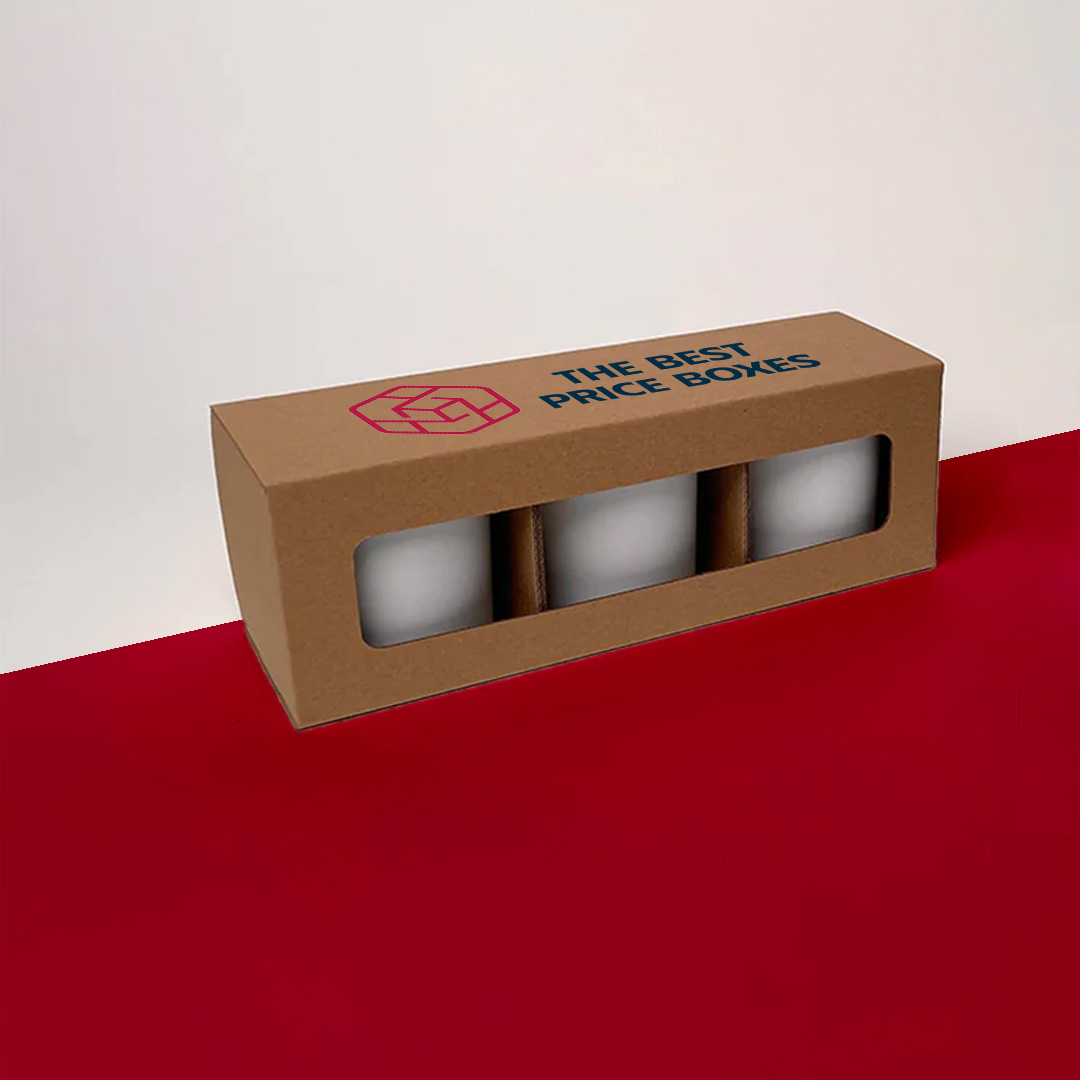

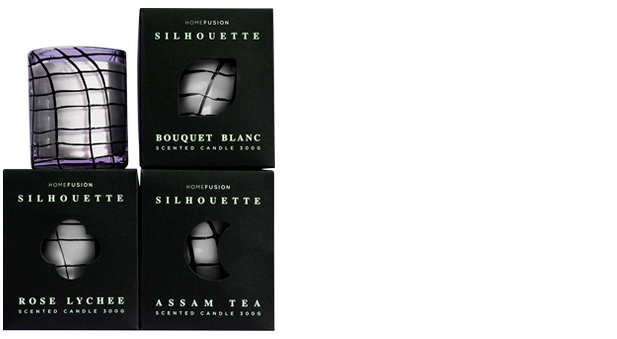

Measure the jar at its widest point and its full height, lid included if there is one. Add about 1/8 inch of clearance per side. Jars are rarely perfect cylinders, so measure two or three samples from the batch. Then decide the window shape. A tall rectangle shows the label. A round or arched window frames the flame side of a hand-poured top. A wide band across the middle shows wax color best.
Keep at least a half inch of solid board around the window. A huge opening makes the front panel floppy, and the carton starts to bow when stacked. If you want to show a lot of the jar, consider a sleeve and tray candle box, where the structure stays firm even with a large reveal.
Window film or an open cut-out
Clear film keeps fingers and dust off the candle, and it is what most buyers expect. An open die-cut costs less to produce and makes the box easier to recycle with ordinary paper. The downside is that people poke the wax, so an open window suits a jar with a lid. Tell us which route you prefer and we will mark it on the dieline.
- Tuck-end or auto-lock carton styles sized to the jar
- Rectangular, round, arched or custom-shaped window, with or without film
- White, kraft or colored board, from the 16 to 24 pt range for folding carton stock
- CMYK or Pantone print, matte or gloss coating, optional soft-touch lamination
- Foil or embossing around the window frame for gift ranges
One more practical point: wax can bloom or frost, and a window shows it. Frosting is a harmless cosmetic effect in some natural waxes, but a shopper may read it as a defect. If your wax is prone to it, a smaller window, or a frame that hides the top edge of the jar, keeps attention on the label and the color instead. Check a finished candle against the window opening before you approve the dieline.
The jar lid, if you use one, also changes the fit. Include it in the height you give us, and tell us if the lid is wood, metal or glass.
When a window is the wrong choice
If the candles travel by post, a window box alone is not enough protection. Put the jar in a candle shipping box with an insert, then use the window carton as the inner retail pack. For a closed, gift-style presentation, a two piece candle box feels more formal. The candle jar boxes page covers the plain closed version, and the whole range sits under candle boxes.
Send us the jar dimensions and how many boxes you want, even one, and we will draw the dieline with the window placed and quote it.
Frequently asked questions
Is there a minimum order for candle window boxes?
No. TBPB has no minimum order, so you can order one box to check the window placement or thousands for a full launch. The dieline is drawn to your jar size either way, and reorders at any quantity are simple.
How big should the window be on a candle box?
Leave at least half an inch of solid board around the opening so the front panel keeps its shape. Within that limit, match the window to what you want shoppers to see: a tall one for the label, a wide band for wax color, or an arch for a hand-poured top.
Should I use clear film or leave the window open?
Film protects the jar from dust and fingerprints and is what most shoppers expect. An open cut-out is simpler and easier to recycle, and works best when the jar has a lid. Tell us your preference and we will mark it on the dieline.
Will a window make my candle fade?
It can. Some dyes and fragrance oils fade under sustained light, and a window exposes the jar. Pale dyes are the most at risk. Use a smaller window, keep stock off bright shelves, or choose a closed carton for light-sensitive candles.
Do candle window boxes work for shipping?
Not on their own. They suit retail display. For shipping, place the boxed candle inside a corrugated shipping box with an insert or padding. The window carton is then the inner pack that the customer sees when the parcel is opened.
What size do I need for my candle jar?
Measure the jar at its widest point and its full height, then add about 1/8 inch per side. Check two or three jars from your batch because hand-poured jars vary. Send the numbers and we confirm the fit on the dieline before print.
