Bottle product inserts are the fitted pieces inside a box that hold a bottle upright and still, so it does not rattle, tip or crack in transit. TBPB makes them custom to your bottle with no minimum order, and we beat any written quote for the same specs.
What an insert actually does
A bottle in a plain box is a loose object in a hollow space. Drop the box once and glass hits the wall. An insert fixes the bottle at the neck, the shoulder or the base, so force travels through the board rather than the glass. It also centers the bottle behind a window and keeps a dropper or pump from pressing against the lid, which matters more than people expect on serums and oils.
Insert types and when each one fits

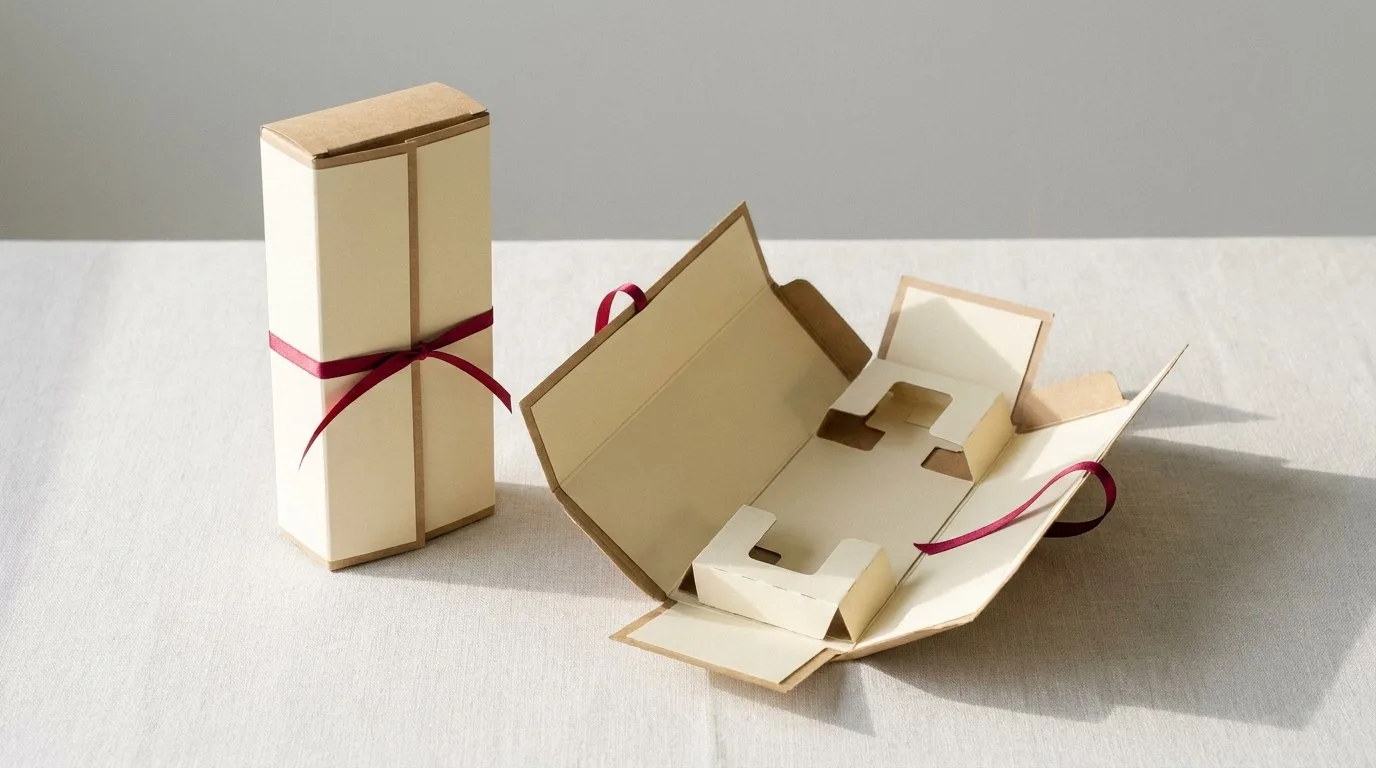

A paperboard or corrugated die-cut insert is flat-packed, cheap to ship and good for a single bottle with a straight body. A folded neck-hold insert grips the bottle by the shoulder and suits tall, slender bottles. A multi-bottle divider keeps sets from clinking, and is the usual answer for gift sets of two or three. Foam or EVA inserts cut to the exact bottle outline feel premium and cushion the best, which is why they appear in perfume and spirits sets. Moulded pulp is a good fibre-based alternative where you want a plant-fibre look, though tooling is a bigger step than a die-cut sheet. You can see foam options in our custom foam inserts.
How to give us the right measurements
Measure the bottle at its widest diameter, its overall height with the cap on, and the neck diameter below the cap. If the bottle is square, measure both sides. Tell us the glass thickness and whether the surface is tapered or has a curved shoulder, because a tapered body needs a different cavity than a straight one. We cut the cavity with about 1/16 to 1/8 inch of tolerance so the bottle can be inserted by hand without force, but not so loose that it wobbles. If you can, post a real bottle for a fit test, which is the most reliable check before you commit to a full run.
Contents such as oils, alcohol and cosmetics fall under their own labeling and regulatory rules, and those are yours to confirm with your own adviser. TBPB makes the insert and prints supplied artwork.
- Types: die-cut paperboard, corrugated, foam, EVA, moulded pulp
- Layouts: single bottle, 2-pack, 3-pack, set with dropper
- Fit: neck-hold, base-hold, shoulder-hold, full-cavity
- Print: plain, kraft, or printed in CMYK or Pantone
Where inserts go wrong
The two usual mistakes are measuring the bottle without the cap and forgetting the label or shrink sleeve. A sleeve adds thickness at exactly the point the insert grips, and a wide cap can stop the lid closing. Another is choosing a cavity so tight that packers struggle on a busy line, which slows everything down and tears the board edge. Give us the finished, filled and labelled bottle and we size around that.
Pairing the insert with the right box
An insert is only as good as the carton around it. For single bottles, our bottle boxes are sized to take an insert. For small dropper and 30 ml sizes, look at the 30 ml bottle boxes and the dropper bottle boxes. The whole bottle box range shows more formats.
Send us the bottle dimensions and your quantity, even for a single insert, and TBPB will draw the dieline and quote it. A real bottle in the post is better than a drawing.
Frequently asked questions
What is a bottle product insert?
It is a fitted piece, usually die-cut board, foam or moulded pulp, that holds a bottle upright and stable inside its box. It stops the bottle rattling, tipping or knocking against the walls in transit.
Is there a minimum order for custom bottle inserts?
No. TBPB has no minimum order, so you can order one insert to test the fit or thousands for a launch. Send the bottle dimensions and quantity and we draw the dieline and quote it.
What measurements do I need for an insert?
Give the widest bottle diameter, total height with cap, and neck diameter. For square bottles measure both sides. Note any taper or curved shoulder, since that changes the cavity shape and the grip.
Should I choose foam or paperboard for a bottle insert?
Paperboard is cheaper and ships flat, and it works for straight-sided single bottles. Foam or EVA cushions better and looks more premium, so it suits perfume, spirits and gift sets.
Can inserts hold more than one bottle?
Yes. A multi-bottle divider or cut-out keeps two, three or more bottles apart so they do not clink. Tell us the layout and any caps or droppers that need extra clearance.
Can I send a sample bottle for fit?
Yes, and it is the best way to check the cavity before a full run. A real bottle shows taper, shoulder shape and cap height more reliably than any drawing or spec sheet.
